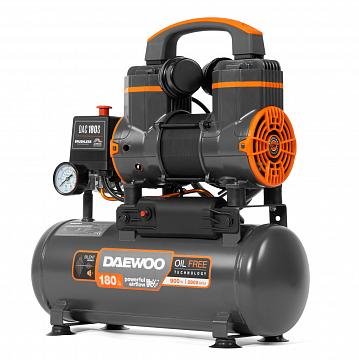

Oil Free Air Compressor DAEWOO DAC 180S

0.9 kW

Power consumption

170 l/min

Performance

8 bar

Maximum pressure

8 l

Tank volume

All Technical Data

Warranty

139 €

Where to buy

Find a service

Compare(0)

Oil-free

Four degrees of protection

Power: 1300 W

Low noise

Oil Free Air Compressor DAEWOO DAC 180S

Video
Technical Data
Where to buy
Support

Video

Features

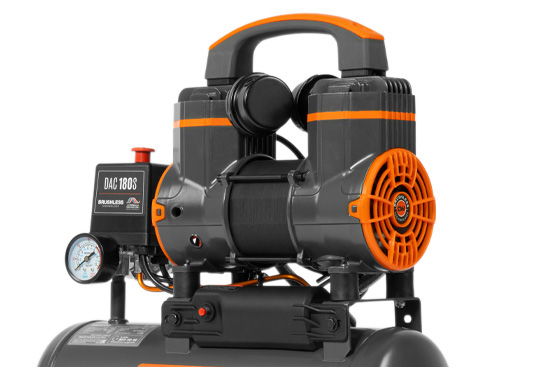

DAEWOO Brushless motor

High-performance quiet electric motor with a power of 900 watts and 2800 rpm. Specially designed for air compressors and has a high operating life.

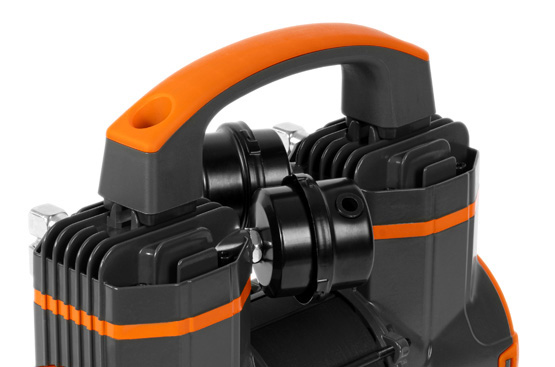

High performance

Separate air injection lines into the receiver and an individual air filter for each cylinder facilitate the flow of air and achieve high productivity up to 170 l/min.

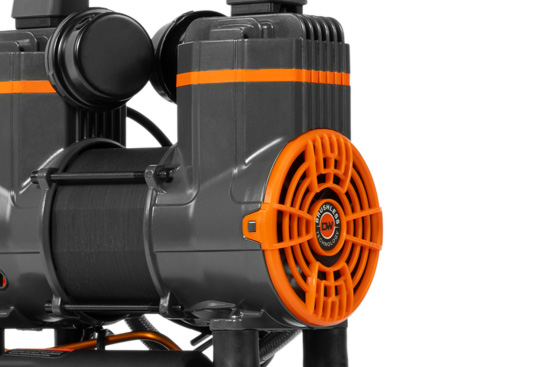

Efficient cooling system

The heat-removing fins of the enlarged cylinder block ensure efficient cooling and long-term, continuous operation. Two large fans are installed on the engine to create additional airflow and increase cooling efficiency by 40%

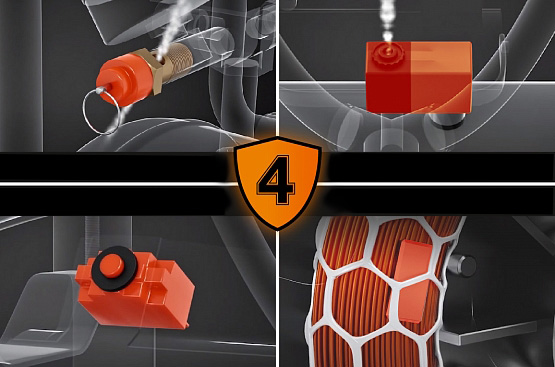

4 protection levels

Overpressure protection. The safety valve is triggered when the pressure in the receiver reaches 9 bar. Residual pressure protection. The solenoid valve automatically relieves pressure in the mains after the compressor is turned off. Overload protection. It is triggered when the input voltage is too low or too high, turning off the device. Overheating protection. Automatically turns off the device when the permissible temperature is exceeded.

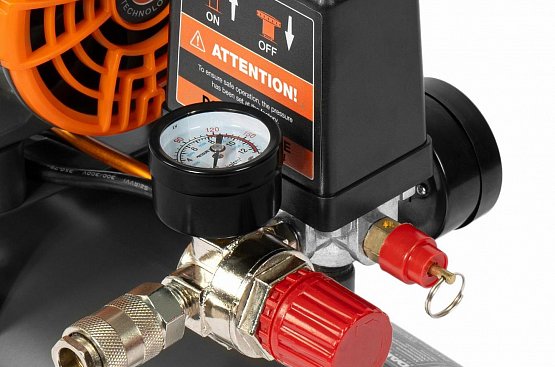

Equipment

1/4-inch quick-release connection, simplifies connection and cuts off the air supply when the hose is disconnected. Pressure gauge for monitoring the pressure in the receiver.

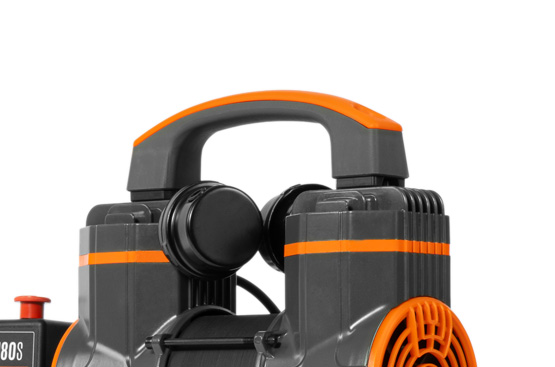

Comfortable handle

It allows you to quickly and conveniently transfer the compressor to the workplace.

Technical Data

Performance

170 l/min

Tank volume

8 l

Maximum pressure

8 bar

Number of cylinders

2 pc.

Protection class

IP21

Transmission type

direct

Number of manometers

2 pc.

Anti-vibration feet

4 pc.

Power consumption

0.9 kW

Engine speed

2800 rpm

Engine manufacturer

DAEWOO

Phase

Voltage

230 V

Weight

11,5 kg

Dimensions of packing (L/W/H)

460х190х415 mm

Packing list:

Air Compressor , manual, warranty card
