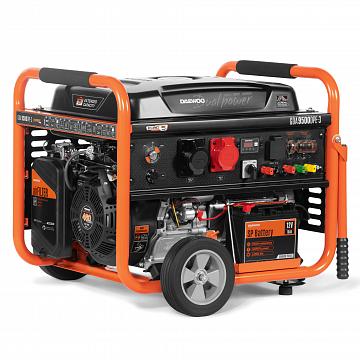

Petrol Generator DAEWOO GDA 9500DPE-3

8.0 / 8.0 kW

Maximum power 230V / 400V

7.5 / 7.5 kW

Rated power 230V / 400V

459 cm³

Displacement

18 HP

Engine power

All Technical Data

Upgrade the warranty

2039 €

Where to buy

Find a service

Alternator copper winding

Low noise and vibration

Expanded capacity fuel tank

AVR (Automatic Voltage Regulator)

Features

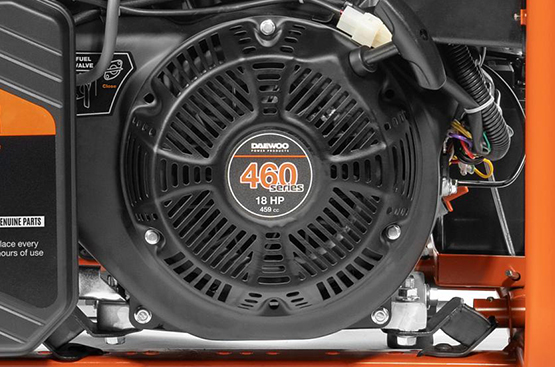

Professional DAEWOO engine

The professional DAEWOO series 460 engine. Extended service life. Quick-start system. Reliable operation at sub-zero temperatures. 230 V electric starter.

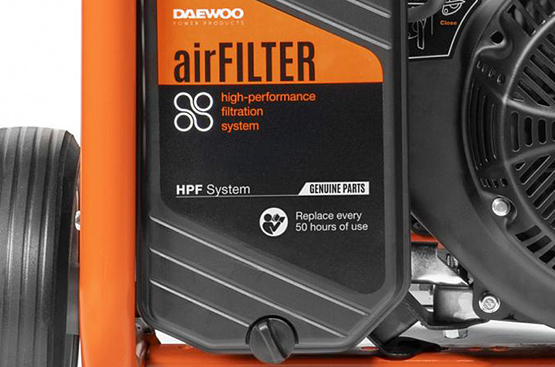

Air filter

An enhanced air filtration system protects the engine from overheating and ingress of dust or debris.

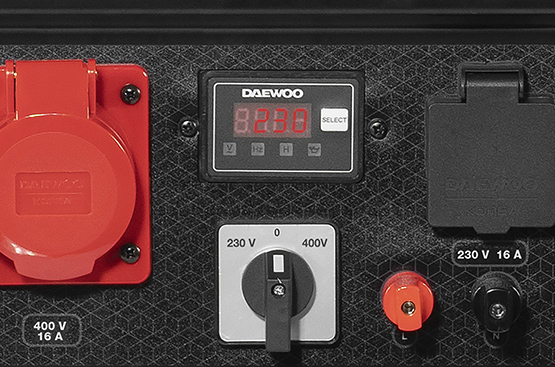

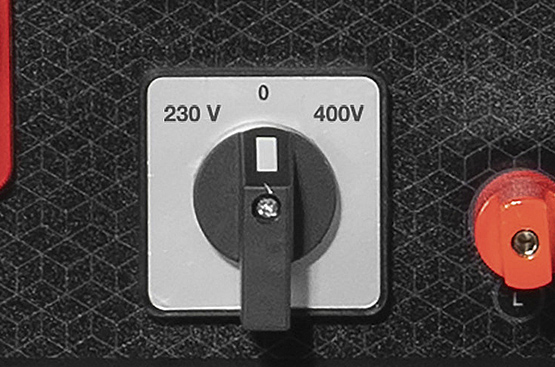

Two operating modes: 230 V / 400 V

The unique Dual Power system allows the generator to be used in two modes: to power single-phase and three-phase appliances, while delivering equally high power output. A selector switch on the control panel allows you to change the generator's operating mode with a simple turn.

Multifunctional display

The multifunctional display shows all main generator operating parameters in real time: voltage and frequency. It also displays the total operating hours (hour meter) for timely maintenance.

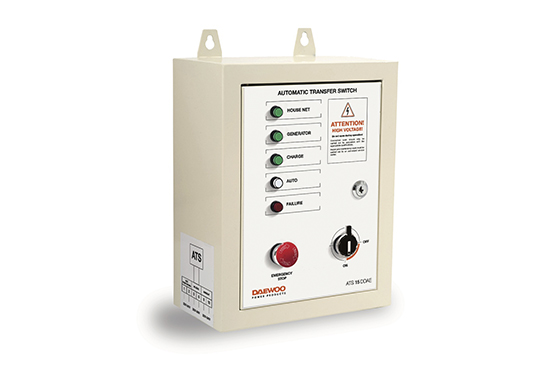

ATS – Automatic Transfer Switch system

The generator supports operation with an Automatic Transfer Switch (ATS) unit and is equipped with a connector for the generator control system in the event of a power outage.

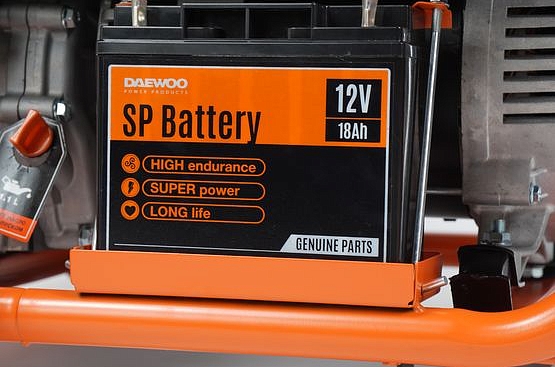

Electric start

A built-in electric starter and on-board battery allow you to start the generator with a simple turn of a key without pulling the recoil starter, making the startup significantly easier.

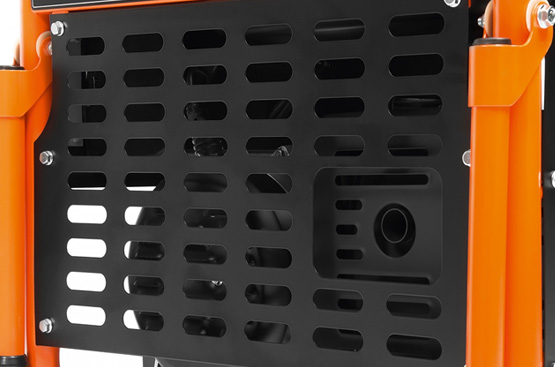

Engine and alternator protection

Additional metal shields are installed to protect vital generator components from mechanical damage. Recommended for use on construction sites.

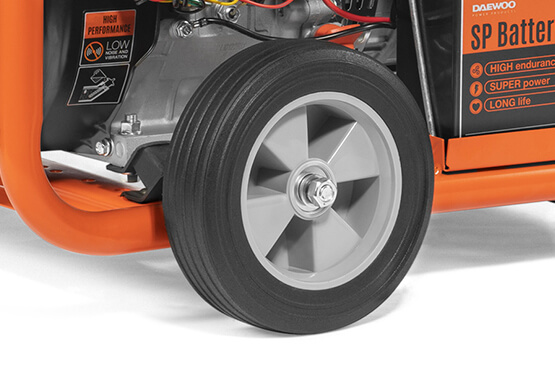

Transportation kit included

Consists of rubber wheels, parking supports, and a folding handle. The wheels are made of solid rubber with a steel base on bearings; they are puncture-resistant and require no inflation or maintenance throughout their service life.

Technical Data

Maximum power 230V / 400V

8.0 / 8.0 kW

Rated power 230V / 400V

7.5 / 7.5 kW

Voltage

230/400 V

Voltage regulator

AVR

Power Factor

1 Cosφ

Sockets

1х16А/1х32 А (230V), 1х16А(400V)

ATS Connector

yes

Display

3 in 1

Run time 50% load

17 h

Displacement

459 cm³

Engine power

18 HP

Engine model

series 460

Engine manufacturer

DAEWOO

Fuel type

Petrol

Fuel tank volume

30 l

Oil volume

1,1 l

Starting system

electro

Transportation kit

yes

Dimensions (L/W/H)

830х580х570 mm

Weight

97.9 kg
